About systems
Irrigation machines are the most popular irrigation technology, which is used by about 70% of agricultural holdings around the world.
Reasons for being in demand
- Yield increase by 2-3 times (productivity of irrigated lands is several times higher).
- Short payback period of equipment (on average about 3 years).
- Economically profitable method of irrigation (requires several times less initial investment per hectare in comparison with drip irrigation).
- Guaranteed harvest in case of drought (or lack of precipitation during the desired growing season).
- Simulation of natural precipitation (the system makes the effect of rain).
- Possibility of fertigation (application of liquid fertilizers or pesticides simultaneously with irrigation).

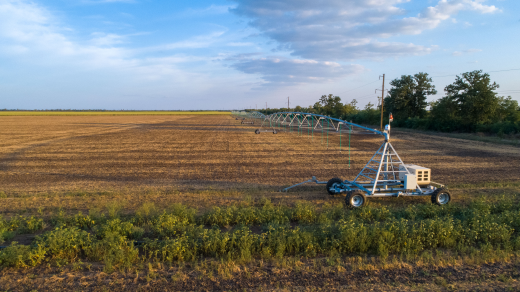

The main types of Variant Irrigation systems
The principle of movement of different types of machines
Differences between different types of irrigation systems
| PARAMETERS | PIVOT | LINEAR | HIPPODROME |
| Principle of operation |  Movement around the fixed central tower |
 Linear movement of the entire instal-lation along the field |
 Movement along the field with a turn in 1 or more places |
| Field shape | square | rectangular | complex configuration |
| Water intake type | 1 supply point (hydrant) | from the channel or from hydrants | from the channel or from hydrants |
| Section length, m | 43,6 / 49,4 / 55,2 / 61 | 43,6 / 49,4 / 55,2 / 61 | 43,6 / 49,4 / 55,2 / 61 |
| Ø of pipes in sections, mm | 133 168 219 245 |
133 168 219 |
133 168 219 |
| Thickness of pipes, mm | 3 | 3 | 3 |
| Length of pipes in sections, m | 5,8 | 5,8 | 5,8 |
| Console length, m | Up to 25 | Up to 25 | Up to 25 |
| Ø of pipes in the central support, mm | 168 219 245 |
168 219 |
168 219 |
| Coating of metal | From 80 microns | From 80 microns | From 80 microns |
| Span height in the uppermost part, m | 5,2 | 5,2 | 5,2 |
| Height from ground to sprengels, m | 2,88 | 2,88 | 2,88 |
| PARAMETERS | PIVOT |

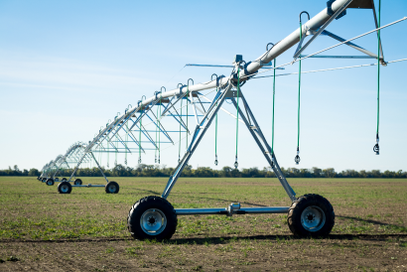

| Principle of operation | Movement around the fixed central tower |
| Field shape | square |
| Water intake type | 1 supply point (hydrant) |
| Section length, m | 43,6 / 49,4 / 55,2 / 61 |
| Ø of pipes in sections, mm | 133 168 219 245 |
| Thickness of pipes, mm | 3 |
| Length of pipes in sections, m | 5,8 |
| Console length, m | Up to 25 |
| Ø of pipes in the central support, mm | 168 219 245 |
| Coating of metal | From 80 microns |
| Span height in the uppermost part, m | 5,2 |
| Height from ground to sprengels, m | 2,88 |
| PARAMETERS | LINEAR |

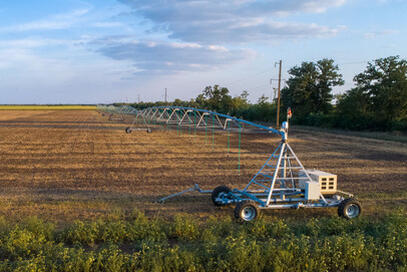

| Principle of operation | Linear movement of the entire instal-lation along the field |
| Field shape | rectangular |
| Water intake type | from the channel or from hydrants |
| Section length, m | 43,6 / 49,4 / 55,2 / 61 |
| Ø of pipes in sections, mm | 133 168 219 |
| Thickness of pipes, mm | 3 |
| Length of pipes in sections, m | 5,8 |
| Console length, m | Up to 25 |
| Ø of pipes in the central support, mm | 168 219 |
| Coating of metal | From 80 microns |
| Span height in the uppermost part, m | 5,2 |
| Height from ground to sprengels, m | 2,88 |
| PARAMETERS | HIPPODROME |

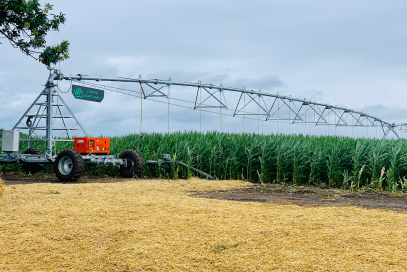

| Principle of operation | Movement along the field with a turn in 1 or more places |
| Field shape | complex configuration |
| Water intake type | from the channel or from hydrants |
| Section length, m | 43,6 / 49,4 / 55,2 / 61 |
| Ø of pipes in sections, mm | 133 168 219 |
| Thickness of pipes, mm | 3 |
| Length of pipes in sections, m | 5,8 |
| Console length, m | Up to 25 |
| Ø of pipes in the central support, mm | 168 219 |
| Coating of metal | From 80 microns |
| Span height in the uppermost part, m | 5,2 |
| Height from ground to sprengels, m | 2,88 |
How to start an irrigation system from scratch?
Read the articleIrrigation systems at work
Variant Irrigation is one of the largest manufacturers
of irrigation equipment in Eastern Europe
of irrigation equipment in Eastern Europe
The only manufacturer of irrigation systems in Romania
Quality confirmed by experts
The products are CE marked (Conformité Européenne). Certified quality management system (ISO 9001)
Equivalent in quality to global irrigation brands
We use the same components as our key competitors (Senninger, Nelson, Komet, Dalgakiran, Schneider electric, etc.).
Favorable prices for agricultural enterprises
Participants of the program of partial compensation of the cost of irrigation equipment from AFIR.
The fastest possible production and delivery terms
Own production in Romania and Ukraine on 24,000 square meters allows you to implement individual customer orders from 2 weeks.
We implement turnkey projects
We implement a full range of works on launching an irrigation system in an agricultural sector
Service and support 24/7
Service teams Variant Irrigation and dealers provide warranty and post-warranty service, training of the client's personnel.
