About irrigation system
The pivot irrigation system is the most autonomous solution to increase yields and reduce operating costs when irrigating.
The pivot system allows you to work almost on any configuration of the field, but, often it is used for square shaped fields.
We produce 2 types of pivot irrigation systems: fixed (not movable) and towable (movable). The towable system allows you to irrigate multiple fields with one unit.
Advantages
- Autonomy (the possibility to start and control remotely the operation of your irrigation system);
- Does not require labor efforts during operation;
- Irrigation uniformity reaches 95%;
- Ability to work in fields with a slope of up to 15%;
- Adjusting the irrigation speed to select the optimal amount of water or fertilizer for the crop.
- Ease of water supply 1 hydrant outlet and one pumping station are enough.
- Possibility of irrigation of several fields with one system (towable type).
- The end section and console can be equipped with an end jet for watering corners.
25% of the cost is compensated (!)
Cost calculator
Fill in the required fields and our project manager will contact you to advise on the cost of the sprinkler machine.
Variant Irrigation is one of the largest manufacturers
of irrigation equipment in Eastern Europe
of irrigation equipment in Eastern Europe
The only manufacturer of irrigation systems in Romania
Quality confirmed by experts
The products are CE marked (Conformité Européenne). Certified quality management system (ISO 9001)
Equivalent in quality to global irrigation brands
We use the same components as our key competitors (Senninger, Nelson, Komet, Dalgakiran, Schneider electric, etc.).
Favorable prices for agricultural enterprises
Participants of the program of partial compensation of the cost of irrigation equipment from AFIR.
The fastest possible production and delivery terms
Own production in Romania and Ukraine on 24,000 square meters allows you to implement individual customer orders from 2 weeks.
We implement turnkey projects
We implement a full range of works on launching an irrigation system in an agricultural sector
Service and support 24/7
Service teams Variant Irrigation and dealers provide warranty and post-warranty service, training of the client's personnel.
System technical features
Principle of operation
The pivot system moves autonomously around a fixed central support, to which electricity and water are supplied. Through the support tower, under a pressure of 2-4 atmospheres the water flows to the sprinklers, and the electric motor starts the wheeled carts on the pipeline, setting the entire system in motion and evenly irrigating the area.
Main elements
1) a central trolley, which may include:
- control cabinet;
- diesel generator;
- position sensors;
- heading stabilization device;
2) farm and water pipeline;
3) section supports;
4) wheel reduction gear and gear motor;
5) additional devices and systems, depending on the configuration.
Each of the irrigation systems can be equipped with a “VI control” remote control and management system.
Parameters
| PARAMETERS | PIVOT |
| Section length, m | 43,6 / 49,4 / 55,2 / 61 |
| Ø of pipes in sections, mm | 133 168 219 245 |
| Thickness of pipes, mm | 3 |
| Length of pipes in sections, m | 5,8 |
| Console length, m | Up to 25 |
| Ø of pipes in the central support, mm | 168 219 245 |
| Coating of metal | From 80 microns |
| Span height in the uppermost part, m | 5,2 |
| Height from ground to sprengels, m | 2,88 |
See the work of machines live in your area
Make an appointment to see the machines working live in your area. We organize individual and group excursions to farms.
Project implementation steps
1
2
3
4
5
6
7
8
Ask any question and our manager will get in touch with you
Recent projects

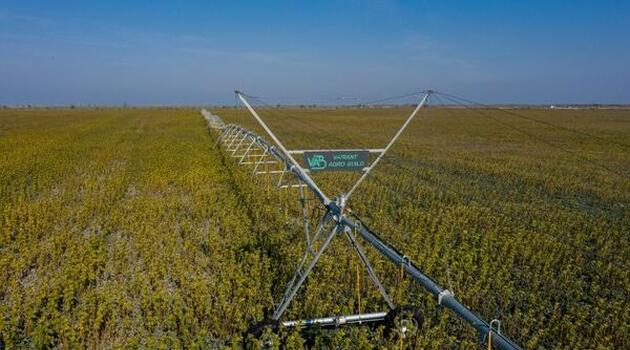

Launch of the two longest irrigation systems in Romania
more details
Installation of six irrigation systems for an agricultural holding from Bulgaria
more details

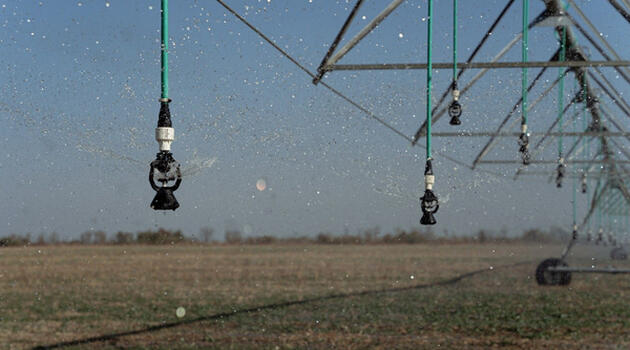

Supply of two pivot irrigation systems with GPS function to Hungary
more details

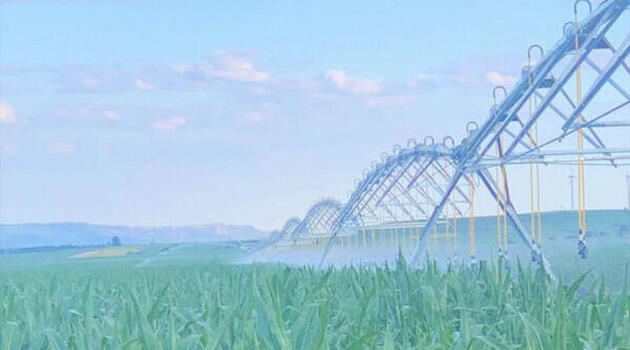

Installation of a traction irrigation machine for irrigation of 4 fields in Romania
more details
